Write it your way.
Build a fraction visually. Edit the LaTeX directly. Use Hybrid to see both together, with one equation draft.
VisualLaTeXHybrid
0.8.2 · Public beta
Make room
Make room
for the math.
Turn the ideas in your head into equations in your notes. Write visually, work in LaTeX, and explore graphs — right inside Obsidian.
Obsidian 1.14.4+ · Desktop only · By Oliver
INSIDE YOUR NOTEBOOK

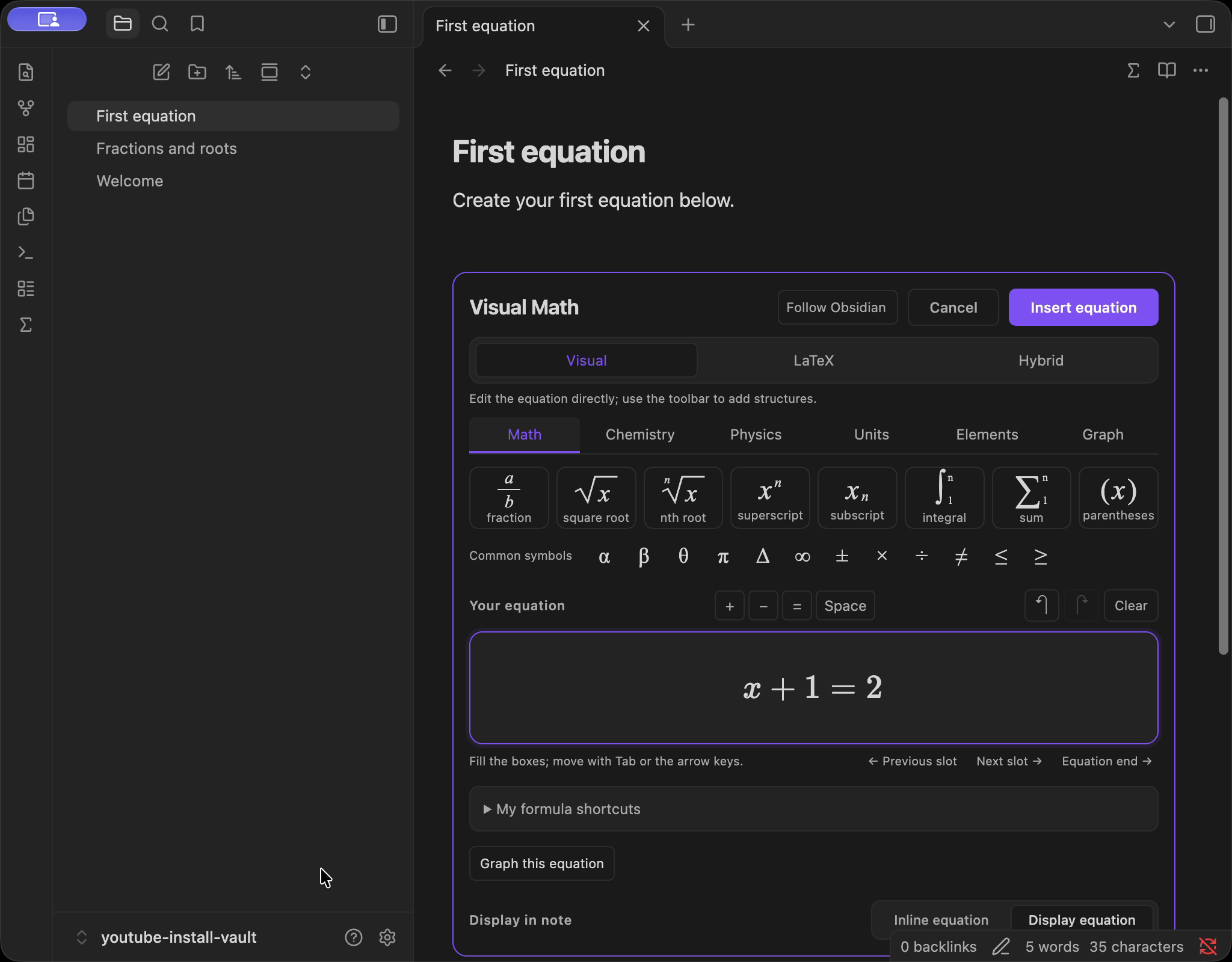

Visual editor draft before insertion. View version capture ↗
Three ways to write Graphs in your notes Runs locally Three interface languages
THINK ON THE PAGE
From a formula
to a clearer idea.
Keep the working where it belongs.
Alongside your thoughts, in your own vault.
See the shape of it.
Preview supported functions from the current equation. Explore polar curves, complex points and explicit XYZ wireframes too.
Numerical graphing within supported domains; not a general equation solver.
Keep the result.
Insert the equation and graph into your note. They become independent blocks. Choose Save view to keep graph navigation changes.

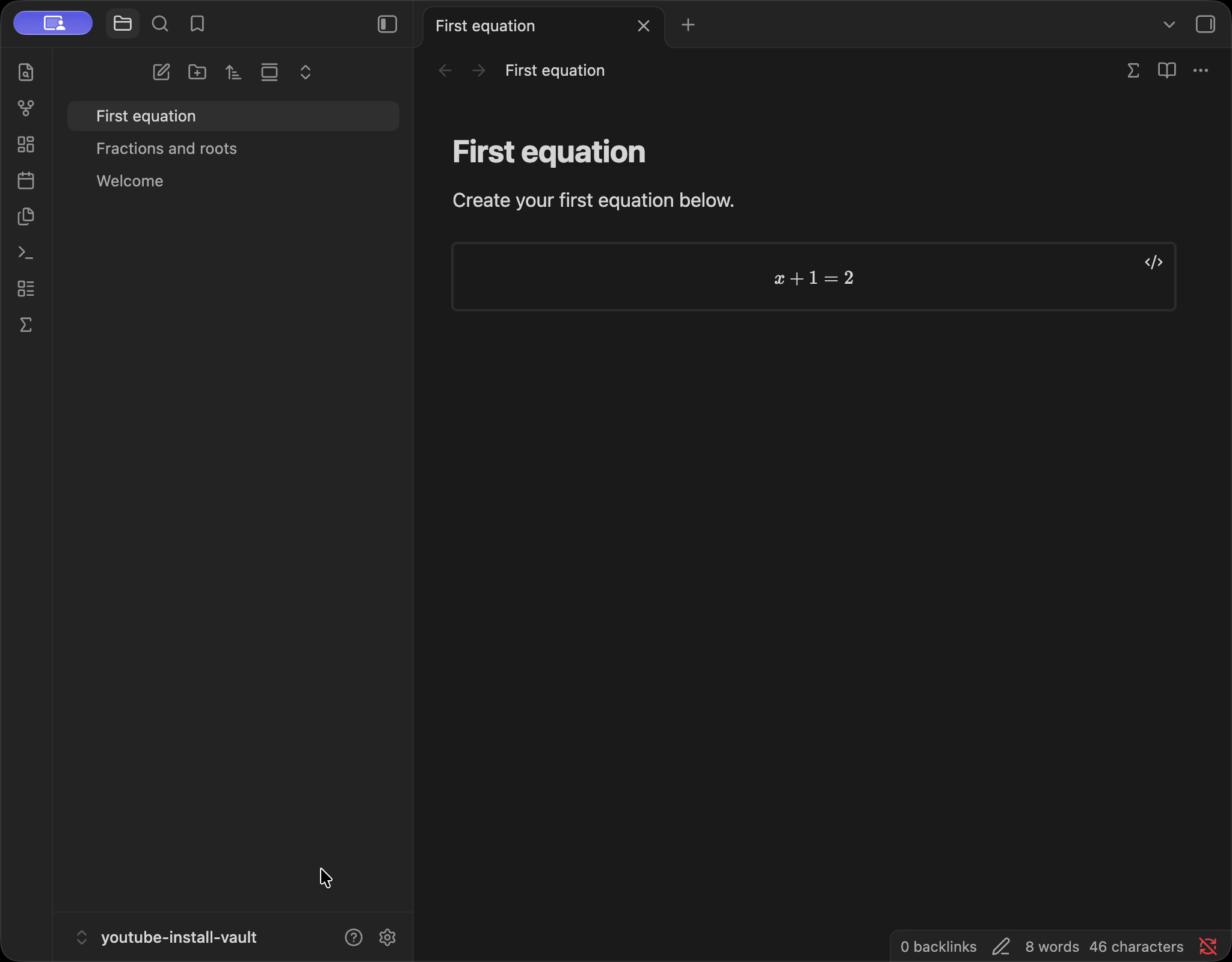

The saved equation remains after closing and reopening the note.
A QUICK LOOK INSIDE
See it in 29 seconds.
Real Obsidian footage.
Visual Math 0.8.2 · Public beta.
On screen: visual formula editing, a function graph, an XYZ wireframe, and installation in Community plugins. No narration; optional background music.
Watch on YouTubeProduct overview · 29 seconds · V5. Continue with the step-by-step tutorials.
A TOOLKIT FOR SCIENTIFIC NOTES
More of the working.
Less of the friction.
From a lecture note to a lab notebook,
keep your notation close to your thinking.
Visual, LaTeX and Hybrid equation editing
Insert and reopen inline or display LaTeX formulas, including fractions, roots, scripts, integrals and sums.
Scope & limits
Unknown macros and complex TeX may require source editing.
Function, polar, complex-plane and XYZ graphs
Plot supported explicit y=f(x), r=f(theta), z=f(x,y), and rectangular complex points locally.
Scope & limits
Numerical approximations; no general implicit/parametric solver, symbolic algebra, overlays or sliders.
Numerical calculus views
First and second numerical derivatives and finite definite integration for supported real functions.
Scope & limits
Not symbolic differentiation/integration; finite increasing continuous intervals only.
Chemistry and physics writing tools
Format chemical notation, use bounded balance suggestions, insert physics symbols and editable templates.
Scope & limits
Balance suggestions do not establish reaction feasibility; no molecular or physics simulation.
Units and periodic table
Convert among 63 preset unit choices in 11 categories; look up 118 elements.
Scope & limits
Within-category preset conversion and local reference data; no arbitrary dimensional analysis.
Custom formula keywords
Save up to 50 formula shortcuts per vault and expand them in Visual/Hybrid formatted input.
Scope & limits
Keywords do not expand in ordinary notes or the LaTeX source pane.
Your workspace stays local. No runtime account or network connection is required. Downloading and installing the plugin needs access to its distribution source.
English · 简体中文 · Español
START HERE
A small addition.
A new way to take notes.
Visual Math is an Obsidian desktop plugin.
Install it in the vault you want to use.
Recommended0.8.2 · Public beta
Install from Community plugins
- Settings → Community plugins
- If required, allow community plugins
- Browse → search Visual Math
- Select Visual Math by Oliver; verify repository oranipost/visual-math-editor
- Install → Enable
- Open a Markdown note → ∑
YOUR FIRST EQUATION
A fraction. A small addition.
Your first saved formula.
Use an editable Markdown note in
Obsidian’s desktop main window.
- Open the editor.
Click ∑ in the note header or ribbon. Choose Visual → Math → Fraction.
- Build the fraction.
Enter 3, press Tab, then enter 4. Switch to LaTeX and append
+1. - See both, then insert.
Choose Hybrid to see the source and formatted equation. Choose Insert equation.
- Close. Reopen. Keep thinking.
Close the note tab and reopen it. Put the cursor inside the saved equation, then click ∑ to edit again. Choose it from the picker if prompted.
LEARN ONE THING AT A TIME
A path into
your next notebook.
Start with installation, then build
your first equation and go from there.
3 step-by-step tutorials are available now. Watch in order in the Start Here playlist , or choose a lesson below.
Install & Enable Visual Math in Obsidian | 0.8.2 Public beta
Find the correct plugin, install it and enable it in your vault.
PublishedWatch tutorialYour First Equation in Obsidian: Create, Save & Reopen | Visual Math 0.8.2
Write a formula, insert it, then close and reopen the note.
PublishedWatch tutorialFractions & Square Roots in Obsidian | Visual Math 0.8.2
Build structured notation with fractions and roots.
PublishedWatch tutorial
AN OPEN NOTEBOOK
Where things stand.
Where ideas could go.
Future scope and dates are not confirmed.
Discussion themes are marked Considering.
Last product review: October 19, 2026
Considering
- Feedback & stability
- Editing & usability
- Graph workflows
Discussion themes only.
Planned
No confirmed work announced.
In progress
No confirmed work announced.
Released
0.8.2 · Public beta

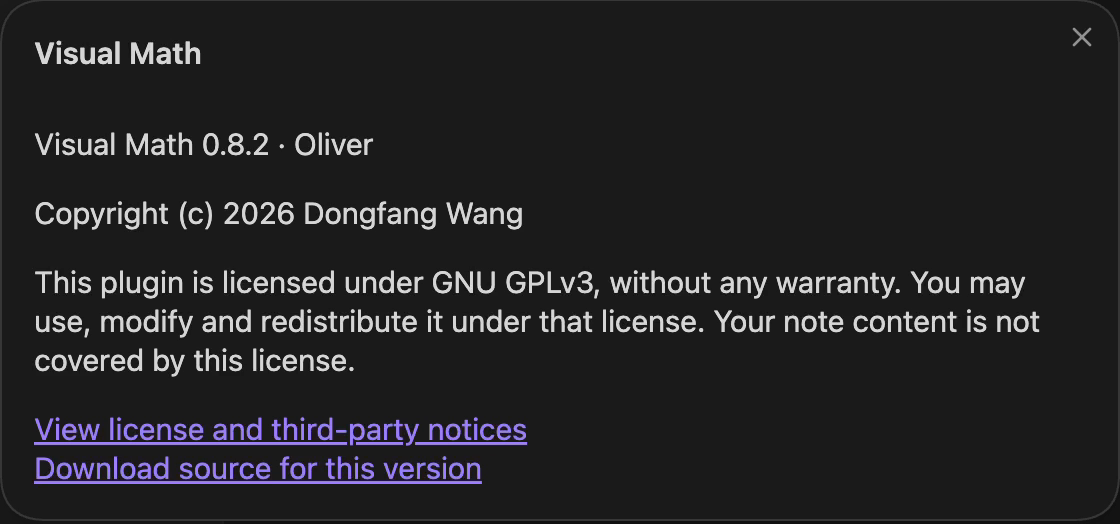

Consistent product naming and About byline.
LATEST RELEASE
0.8.2 Public beta
Released October 18, 2026
Consistent product and About details.
0.8.2 unifies Visual Math / Oliver display metadata and the About byline. Editing, graphing and saved formats are unchanged from 0.8.1.
Read the release notesA FEW USEFUL DETAILS
Before you
get started.
Have a question or a reproducible issue?
Talk to us on GitHubDoes Visual Math work in this browser?
Visual Math runs inside Obsidian on desktop. This website introduces the plugin and helps you install it in a vault.
Which devices can I use?
This release requires Obsidian 1.14.4 or later and is desktop only. Native checks have used macOS with Obsidian 1.14.4. Windows and Linux have not been verified. Mobile is not supported.
Do I need an account, API key or Node.js?
No runtime account, API key or Node.js is required for the compiled plugin. The editor, bundled data and graph tools run locally. Downloading and installing requires access to the distribution source.
Will an edited equation update its saved graph?
Live equation/graph preview is linked only while its editor is open. Saved formula and graph are separate blocks; navigation persists only when explicitly saved. Changing a saved equation later does not automatically update an existing graph. After moving, zooming or rotating a graph, explicitly choose Save view or Save graph to keep the changes.
Can it solve any equation or calculate symbolic integrals?
Graphing and calculus use numerical methods within supported domains. They are not a general equation solver or symbolic algebra system. Numerical calculus is for supported real functions on finite, increasing, continuous intervals; results are approximations.
What if my LaTeX does not render visually?
Unknown macros and complex TeX may need source editing. Use the LaTeX source view and check the expression. Visual editing does not support every TeX command.
How do I report a problem?
Open a GitHub issue with your plugin version, Obsidian version, operating system and exact steps. Include a small example you are comfortable sharing. Check existing issues first.
What license does the plugin use?
GNU GPL version 3 only with the Obsidian linking exception. See the licensing details for the full terms and third-party notices.
THE NEXT IDEA IS YOURS
Give your math
a place to make sense.
Install in Obsidian Obsidian 1.14.4+ · Desktop only · 0.8.2 Public beta
